+[title] Throttle Body Mounting
+[* 1] Install the throttle body gasket with the etching facing OUTWARD. The IACV provision should also locate at the bottom section of the manifold flange. Failure to align these parts can result in leaks.

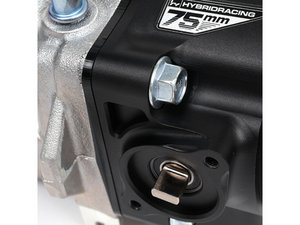

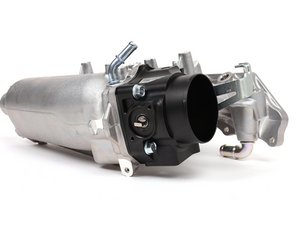

+[* 1] Use the 4 supplied bolts and secure the throttle body to the intake manifold.
