| + | [title] IACV System & Options |
|---|---|
| + | [* 1] ***The Idle Air Control Valve system can be used in three ways with this throttle body.*** |
| + | [* 1] To completely remove the IACV, you must purchase the optional IACV block off plate. Item HYB-ICV-01-04 on the Hybrid Racing website. |
| + | [* 1] This block off plate is designed specifically for this throttle body however it can be used on the OEM K20A2 throttle body. |

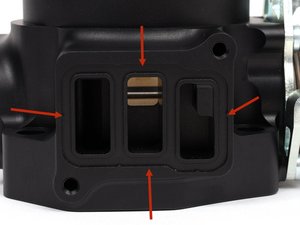

| + | [* 1] Install the supplied gasket in the correct orientation. You can use a little silicone grease to condition the o-ring. Once the gasket is in place, install the block off plate and NPT plug into the body of the throttle body. |
| + | [* 1] (RED This will completely remove the IACV from the engine. You MUST disable the IACV control and set your idle manually. For manual idle adjustment, view step 3. RED) |
