Start by disconnecting the MAF sensor connector. Push down on the clip and slide off to disconnect. With a pair of needle nose pliers, squeeze the wire harness clip together while also pulling it away from the housing. Move the wiring out of the way. With a pair of needle nose pliers, squeeze the wire harness clip together while also pulling it away from the housing. Move the wiring out of the way.
  • Start by disconnecting the MAF sensor connector. Push down on the clip and slide off to disconnect.

  • With a pair of needle nose pliers, squeeze the wire harness clip together while also pulling it away from the housing. Move the wiring out of the way.

Add Comment

With a 10mm socket, loosen the factory hose clamp on the factory air tube. Pull the air intake tube back and slide it off of the air box lid.
  • With a 10mm socket, loosen the factory hose clamp on the factory air tube.

  • Pull the air intake tube back and slide it off of the air box lid.

Add Comment

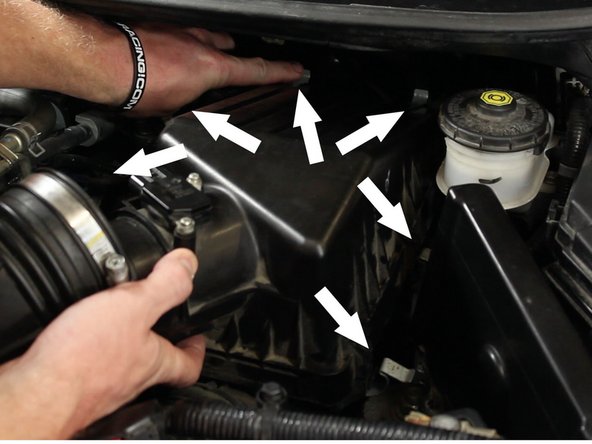

Unhinge the air box lid. There are six hinges total. Remove the air box lid. Remove the air filter.
  • Unhinge the air box lid. There are six hinges total.

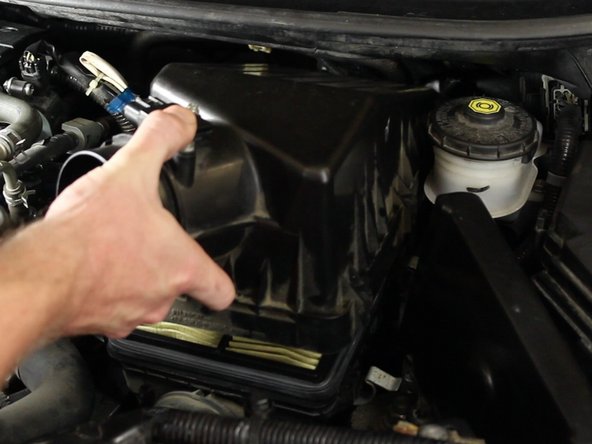

  • Remove the air box lid.

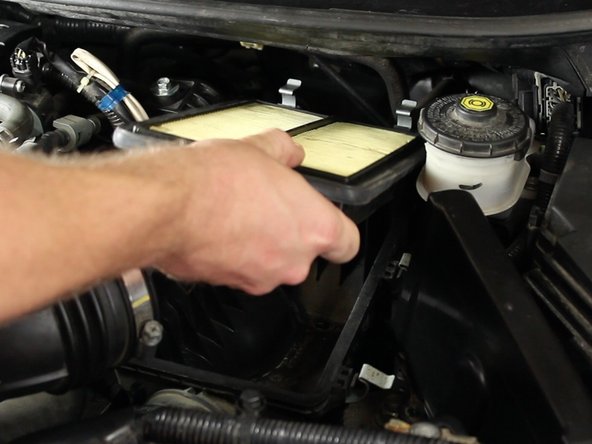

  • Remove the air filter.

Add Comment

Using a 10mm socket, remove the bolts that hold the OEM air box in place. Remove the lower air tube by squeezing the end and pulling upwards.

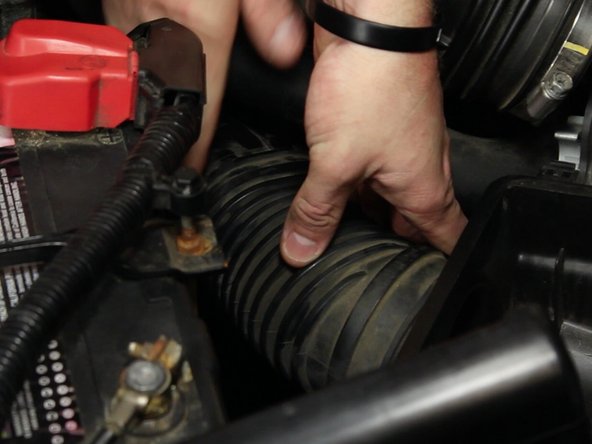

  • Using a 10mm socket, remove the bolts that hold the OEM air box in place.

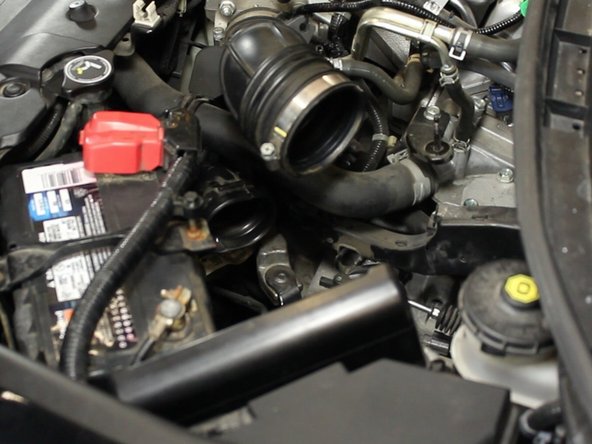

  • Remove the lower air tube by squeezing the end and pulling upwards.

  • Remove the air box assembly.

Add Comment

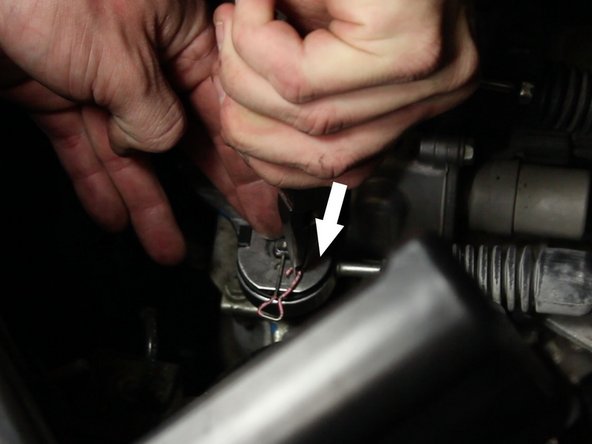

With a pair of needle nose pliers, remove the cotter pin from the top of the large cable bushing. Remove the top metal shim. With a flat tip screw driver, pry the metal insert out of the OEM rubber bushing.
  • With a pair of needle nose pliers, remove the cotter pin from the top of the large cable bushing.

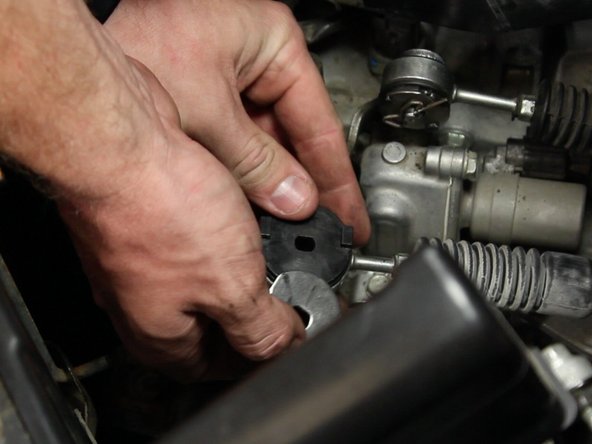

  • Remove the top metal shim.

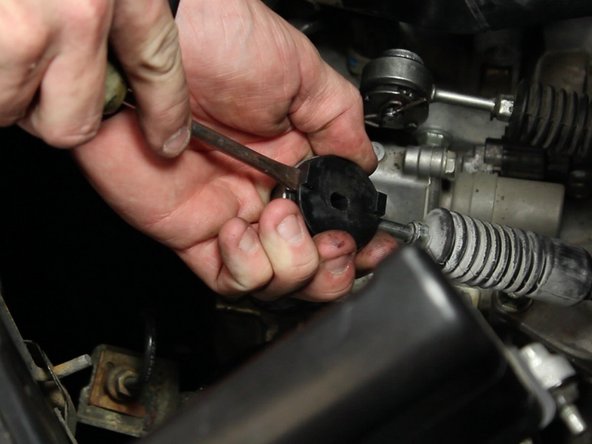

  • With a flat tip screw driver, pry the metal insert out of the OEM rubber bushing.

  • Be careful not to twist or bend the cable in any extreme position. This can permanently damage the shifter cable.

Add Comment

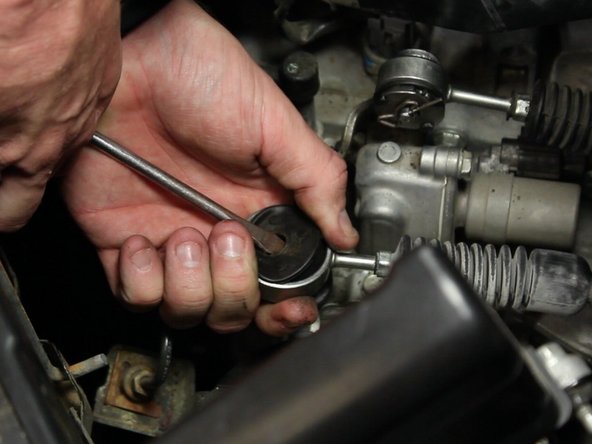

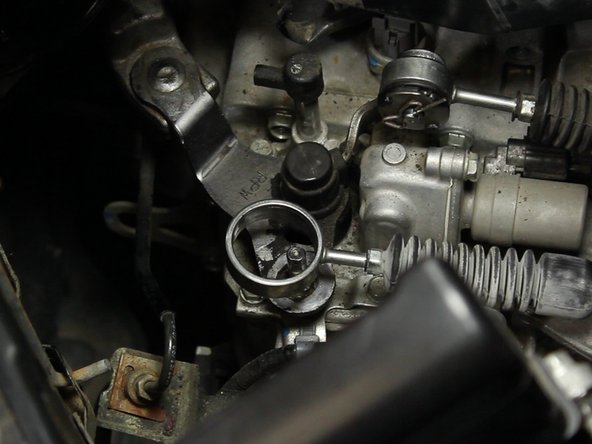

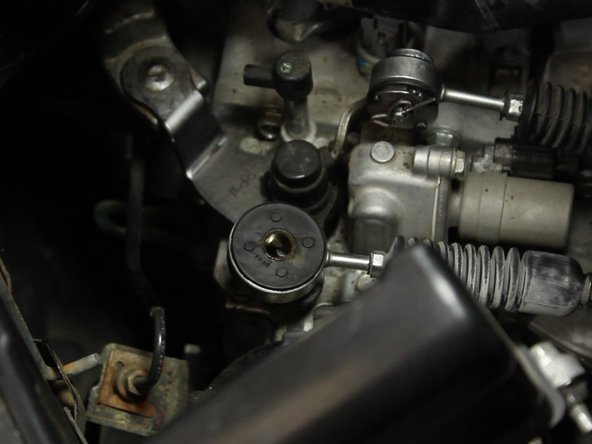

Pry the remaining rubber bushing out of the cable end. Pry the remaining rubber bushing out of the cable end. Pry the remaining rubber bushing out of the cable end.
  • Pry the remaining rubber bushing out of the cable end.

Add Comment

Install the Hybrid Racing bushing with the logo side up. Open the retaining ring and carefully slide into the groove on the bottom of the cable bushing. Be sure to slide the retaining ring around to ensure it holds the bushing in place.

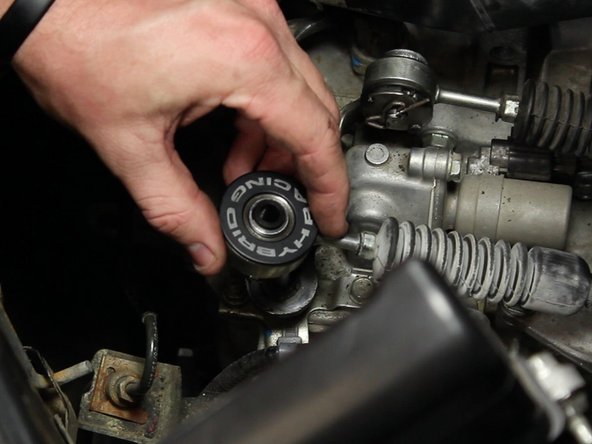

  • Install the Hybrid Racing bushing with the logo side up.

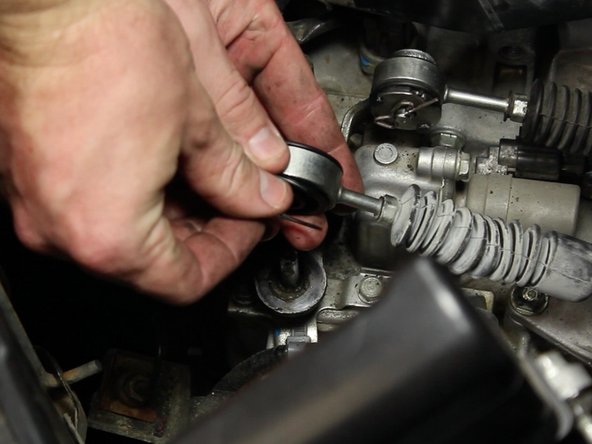

  • Open the retaining ring and carefully slide into the groove on the bottom of the cable bushing.

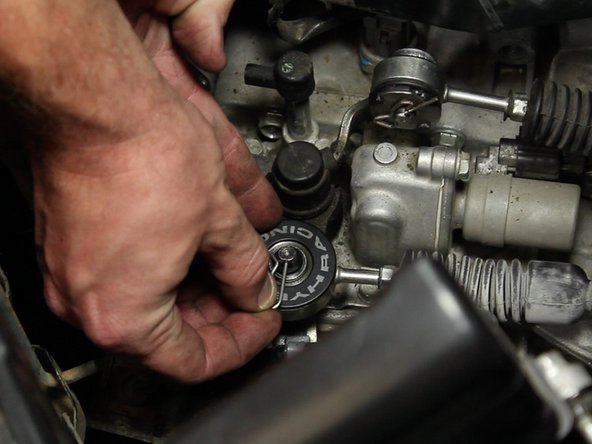

  • Be sure to slide the retaining ring around to ensure it holds the bushing in place.

  • Install the supplied cotter pin.

Add Comment

Using a pair of needle nose pliers, remove the cotter pin on the small bushing. Remove the metal shim Pry the plastic insert out of the rubber bushing.

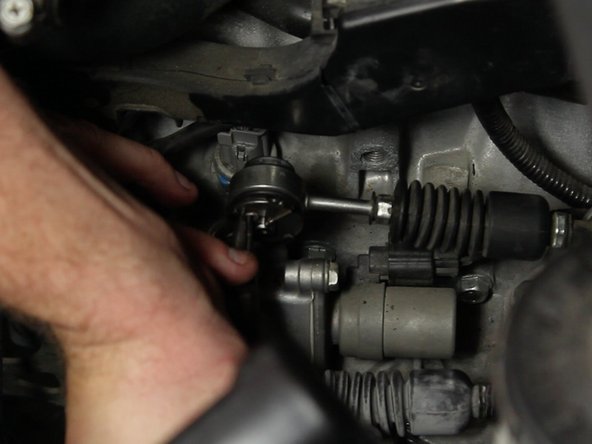

  • Using a pair of needle nose pliers, remove the cotter pin on the small bushing.

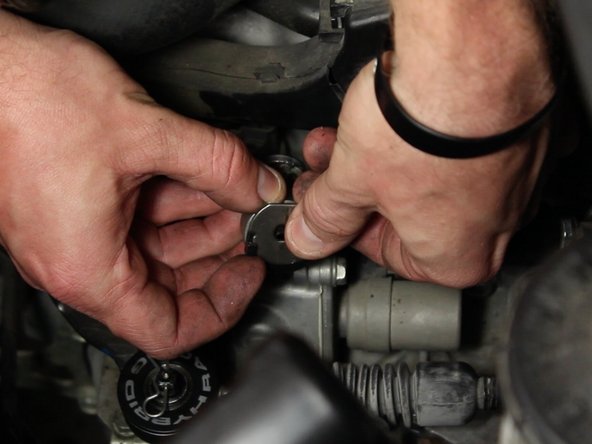

  • Remove the metal shim

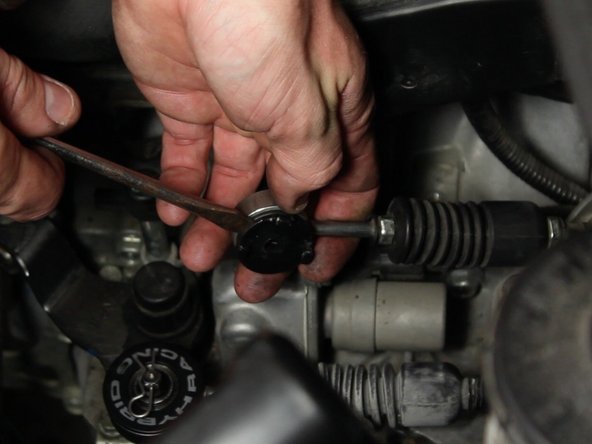

  • Pry the plastic insert out of the rubber bushing.

Add Comment

Remove the OEM bushing. Install the Hybrid Racing bushing, logo facing outward. Install the Hybrid Racing bushing, logo facing outward.

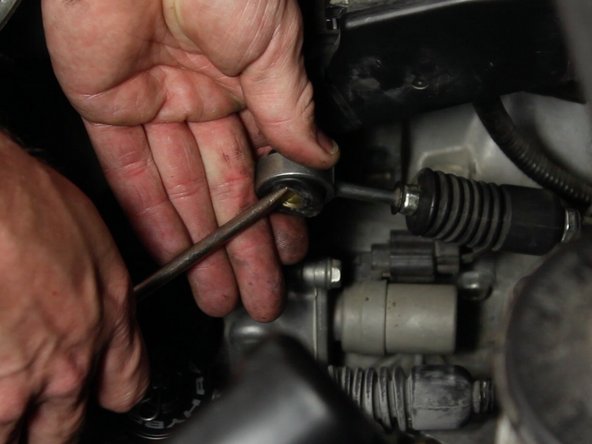

  • Remove the OEM bushing.

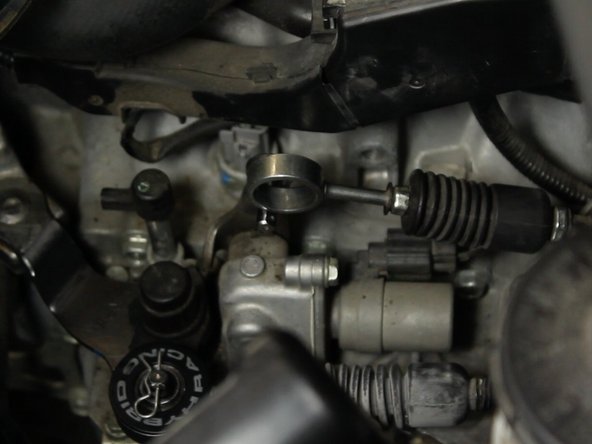

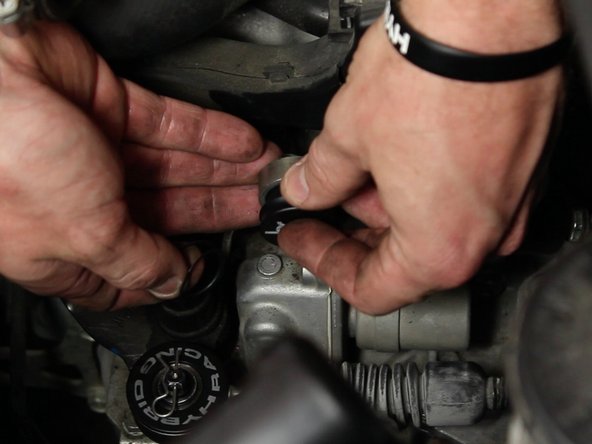

  • Install the Hybrid Racing bushing, logo facing outward.

Add Comment

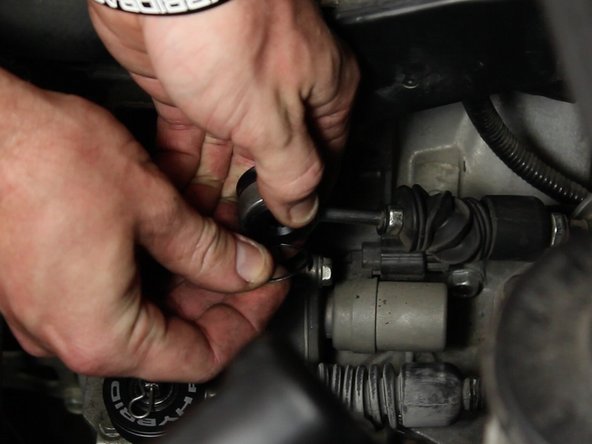

Open the retaining clip and carefully slide it into the groove on the backside of the cable bushing. Install the supplied cotter pin. The shifter cable bushings are installed!
  • Open the retaining clip and carefully slide it into the groove on the backside of the cable bushing.

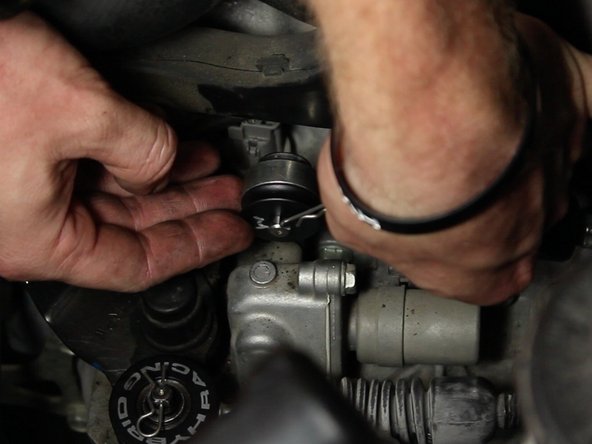

  • Install the supplied cotter pin.

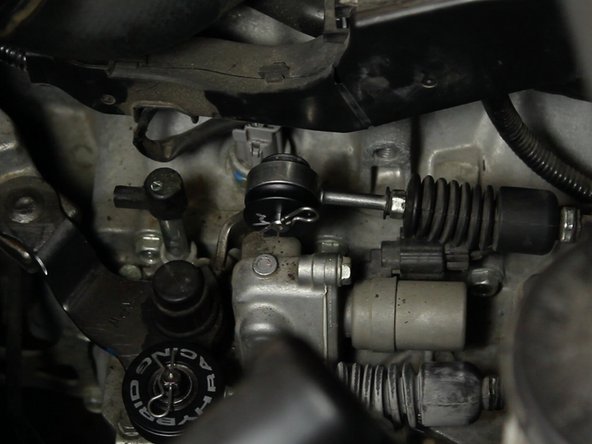

  • The shifter cable bushings are installed!

  • Re-install the items you removed, follow these steps in reverse order.
