  1. The Hybrid Racing fuel rail has two -8ORB ports. One on each end. The side with the logo etching is the feed side and should be connected to a fuel filter which is the fuel FEED. This fuel rail is not compatible with the OEM Honda banjo / damper bolt, so you must replace the fuel line to use a -6AN or -8AN line.
    • The Hybrid Racing fuel rail has two -8ORB ports. One on each end. The side with the logo etching is the feed side and should be connected to a fuel filter which is the fuel FEED.

    • This fuel rail is not compatible with the OEM Honda banjo / damper bolt, so you must replace the fuel line to use a -6AN or -8AN line.

  2. The center section of the fuel rail has a 1/8th NPT port. This port is intended to be used as a location for a fuel pressure gauge. If you do not use a fuel pressure gauge, you can simply install the provided plug. Be sure to use a dab of fuel-safe sealant on this thread to prevent leaks.
    • The center section of the fuel rail has a 1/8th NPT port. This port is intended to be used as a location for a fuel pressure gauge.

    • If you do not use a fuel pressure gauge, you can simply install the provided plug.

    • Be sure to use a dab of fuel-safe sealant on this thread to prevent leaks.

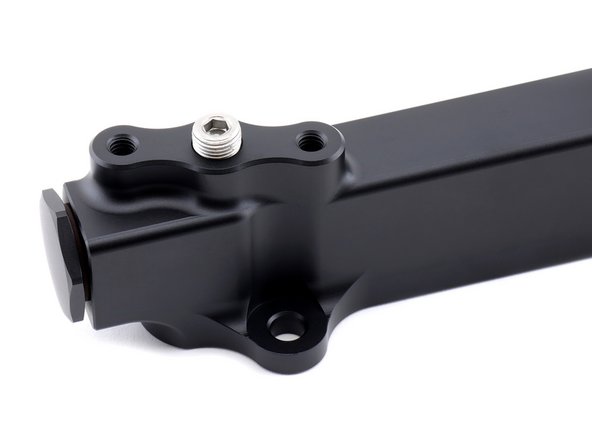

  3. The port above the HR logo is intended to be used with the OEM Honda B-Series fuel pressure regulator. If you are not using an OEM style regulator, you can use the provided 1/8th NPT plug and block this off.
    • The port above the HR logo is intended to be used with the OEM Honda B-Series fuel pressure regulator.

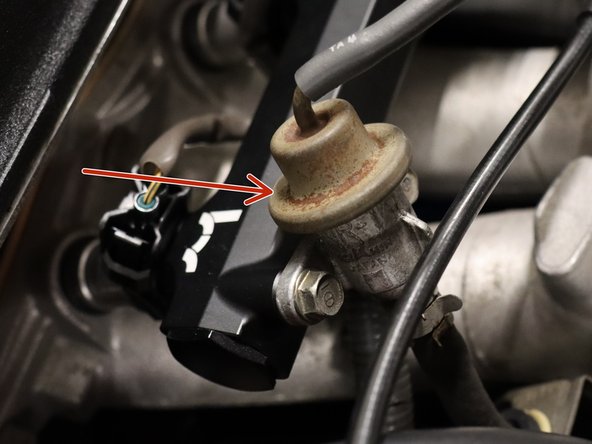

    • If you are not using an OEM style regulator, you can use the provided 1/8th NPT plug and block this off.

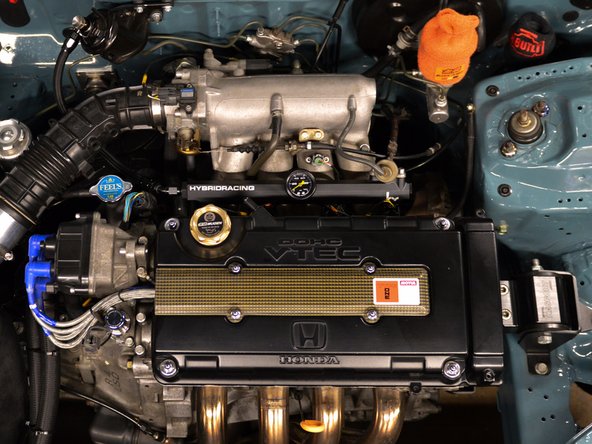

  4. This rail should fit with all OEM B16 & B18 intake manifolds.
    • This rail should fit with all OEM B16 & B18 intake manifolds.

    • It is possible it will not fit on some aftermarket intakemanifolds that are not compatible with OEM fuel rails.

    • This rail was designed to use all of the OEM rail spacers and OBD1 injectors.

    • Please note that you will need to run an AN fuel feed line. The OEM banjo and line will NOT work with our rail.
