Hybrid Racing Radiator Cap Install Guide

Difficulty

Very easy

Steps

Time Required

00:05:00

Introduction

Our radiator cap not only looks great but will also help raise the boiling point of your cooling system preventing a pressure loss due to high outside temperatures and/or motorsport activity.

We recommend using a 50/50 mix of coolant and distilled water.

Step 1 Hybrid Racing Radiator Cap Install Guide

Start by determining what cap you need. Notice the difference in shape.

The type F cap is to be used with aftermarket radiators only. This will not work on an OEM style radiator.

The type D cap is to be used on OEM radiators only. This will not work on aftermarket style radiators.

Start by determining what cap you need. Notice the difference in shape.
The type F cap is to be used with aftermarket radiators only. This will not work on an OEM style radiator.
The type D cap is to be used on OEM radiators only. This will not work on aftermarket style radiators.
Installation of both types is the same.

Edit

Step 2

NEVER REMOVE YOUR RADIATOR CAP WHEN THE COOLANT IS HOT. The cooling system is under pressure when hot it can spray out boiling fluid which can cause serious injury.

Locate your radiator cap near the front end of your car.

Once you are sure the temperature if safe, remove the cap by twisting it counter clockwise.

NEVER REMOVE YOUR RADIATOR CAP WHEN THE COOLANT IS HOT. The cooling system is under pressure when hot it can spray out boiling fluid which can cause serious injury.
Locate your radiator cap near the front end of your car.
Once you are sure the temperature if safe, remove the cap by twisting it counter clockwise.

Edit

Step 3

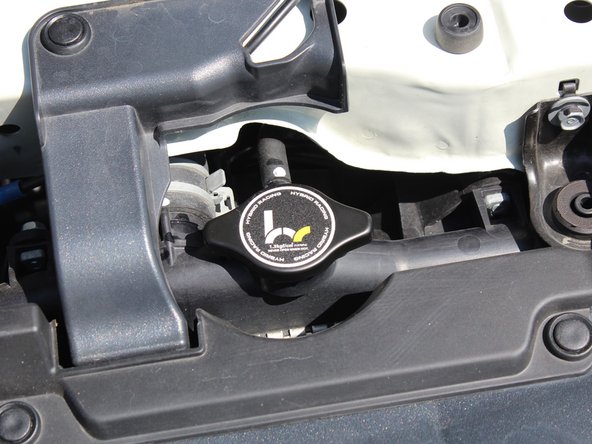

Once you have safely removed your factory radiator cap, install the Hybrid Racing unit by turning it clockwise.

Once you have safely removed your factory radiator cap, install the Hybrid Racing unit by turning it clockwise.
You will feel the cap sealing. If the cap is loose or wiggles after you have installed it, remove it and try again.
