Hybrid Racing Maxim Shift Boot Collar

Written By: David Cordell

Comments: 0
Favorites: 0

Difficulty

Very easy

Steps

Time Required

00:05:00

Introduction

Important!! Please read the entire install guide twice before starting your installation. No really, it’s a good idea to read it twice before you begin so everything goes smooth.

Step 1 Parts of the shift boot collar

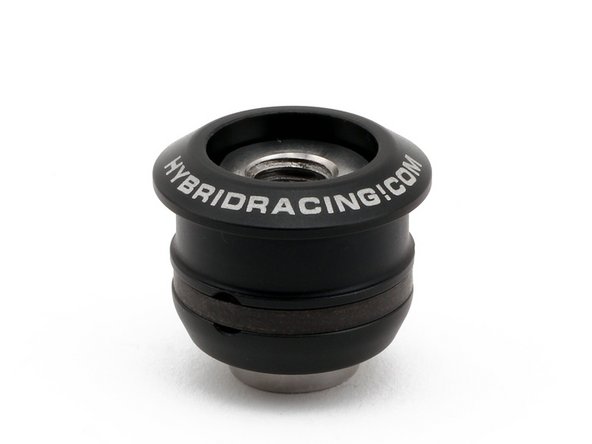

The Hybrid Racing Maxim Shift Boot Collar comes pre-assembled and contains 3 parts.

The Hybrid Racing Maxim Shift Boot Collar comes pre-assembled and contains 3 parts.
The outer collar is made from anodized aluminum.
The inner sleeve is machined from stainless steel.
The elastic rubber retaining band holds the collar to your shift boot.

Edit

Step 2 Installing the boot collar

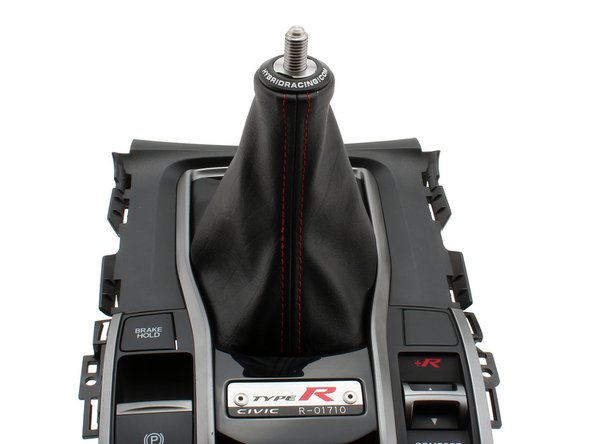

Since this is a universal part, you will need to remove the shift boot from your console and remove the stock collar.

Fold the shift boot inside out and slide the collar all the way in until it comes out the other end.

Since this is a universal part, you will need to remove the shift boot from your console and remove the stock collar.
Fold the shift boot inside out and slide the collar all the way in until it comes out the other end.
Once you have the sleeve in place, stretch the elastic band around the fabric, securing it to the boot.
You should use the elastic band included with the collar kit. Some factory cars use thin zip-ties to secure the fabric but these are bulky and can wear the outside of the boot quickly.

Edit

Step 3 Installing the collar

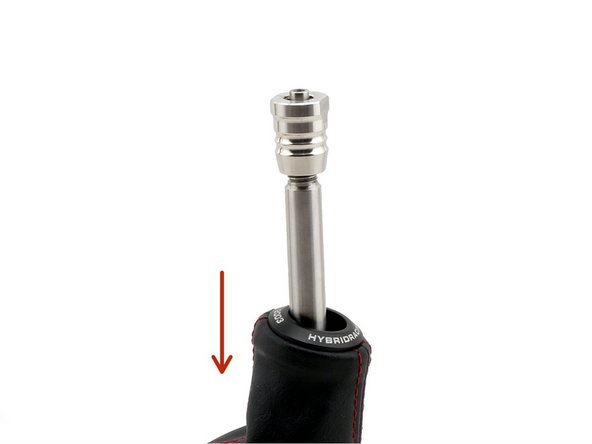

After you have the boot collar secured to the fabric, remove the inner sleeve from the collar. Slide the boot and collar down onto the shift rod.

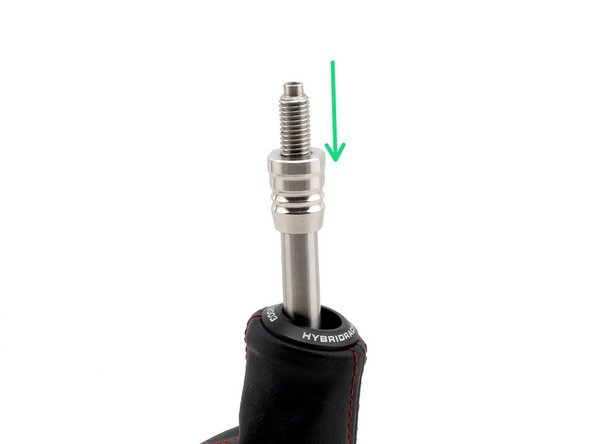

Thread the stainless steel sleeve onto the rod.

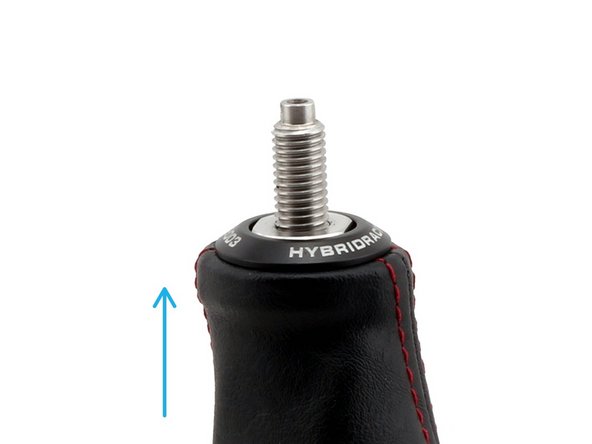

Once you have your shift knob threaded on, use a wrench to tighten the stainless steel sleeve against the knob, locking it into place.

After you have the boot collar secured to the fabric, remove the inner sleeve from the collar. Slide the boot and collar down onto the shift rod.
Thread the stainless steel sleeve onto the rod.
Once you have your shift knob threaded on, use a wrench to tighten the stainless steel sleeve against the knob, locking it into place.
Slide the collar up and it will clip into place.

Edit

Step 4 Installing the collar

One unique feature of our boot collar is that is has two settings which can work with a variety of shift knobs.

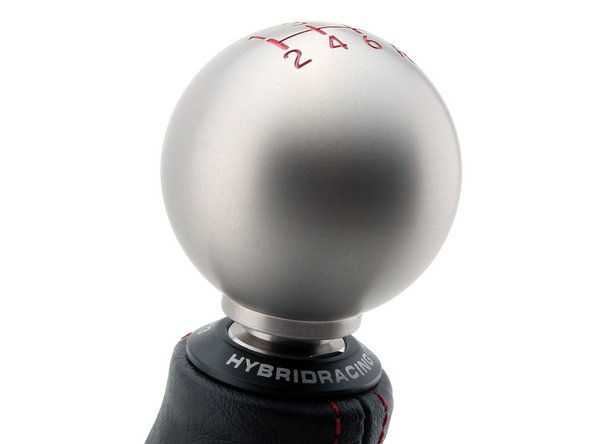

If you prefer to use the OEM Honda knobs, our boot will clip up to conceal the lower lip. (OEM FK8 Type-R Knob Shown)

Install the shift knob and position it to your liking. Use a wrench and tighten the sleeve against the collar.

One unique feature of our boot collar is that is has two settings which can work with a variety of shift knobs.
If you prefer to use the OEM Honda knobs, our boot will clip up to conceal the lower lip. (OEM FK8 Type-R Knob Shown)

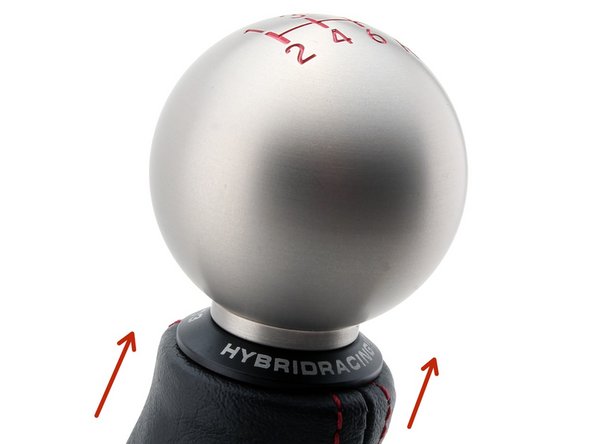

Install the shift knob and position it to your liking. Use a wrench and tighten the sleeve against the collar.
Slide the collar up and it will click into place closing the gap for a nice OEM finish.
