  1. Begin by going to Hondata.com and downloading the latest version of Flashpro Manager.
    • Begin by going to Hondata.com and downloading the latest version of Flashpro Manager.

    • Click on the Flashpro manager link on the Flashpro page to start the download.

    • http://hondata.com/flashpro.html

  2. Locate the OBD2 port below the dashboard on the driver side. Plug your Flashpro into the port. Switch on the ignition but do not start the engine. This will send the vehicle information to the Flashpro that you will need to lock the Flashpro to your ECU.
    • Locate the OBD2 port below the dashboard on the driver side.

    • Plug your Flashpro into the port.

    • Switch on the ignition but do not start the engine. This will send the vehicle information to the Flashpro that you will need to lock the Flashpro to your ECU.

  3. Plug your Flashpro into your computer with the supplied USB cord. Driver installation may be required. Click on the Flashpro button at the top of the Flashpro manager. This will open up the window to fill out information to register with Hondata. Click the Online button at the very top of the Flashpro manager window. This will open a drop down box for you to select to lock your Flashpro to your vehicle.
    • Plug your Flashpro into your computer with the supplied USB cord. Driver installation may be required.

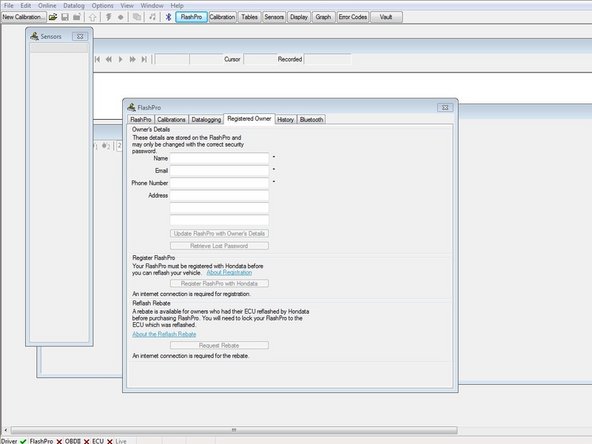

    • Click on the Flashpro button at the top of the Flashpro manager. This will open up the window to fill out information to register with Hondata.

    • Click the Online button at the very top of the Flashpro manager window. This will open a drop down box for you to select to lock your Flashpro to your vehicle.

  4. Select the New Calibration button at the top to open a calibration. Select your model and vehicle information. Select a calibration based on your engine modifications

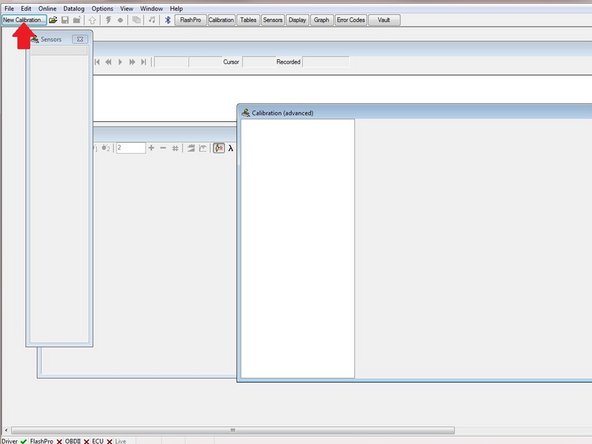

    • Select the New Calibration button at the top to open a calibration.

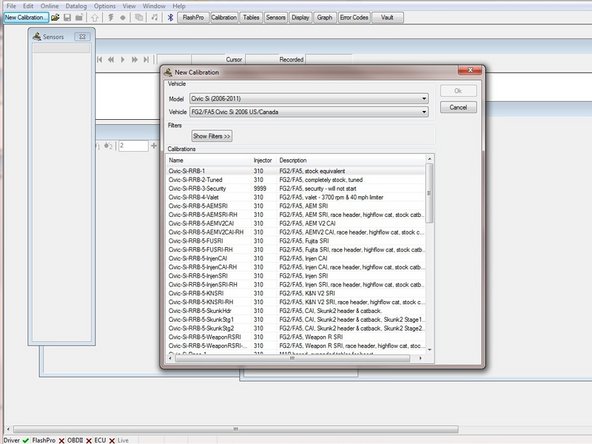

    • Select your model and vehicle information.

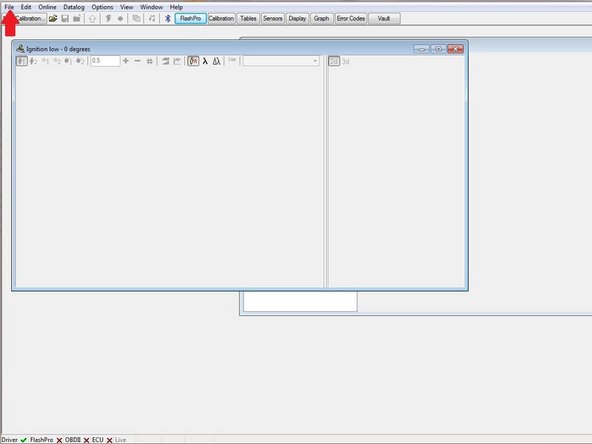

    • Select a calibration based on your engine modifications

    • Go to the File tab at the top left of the window, save/ name the calibration you have selected.

  5. Upload your calibration to your Flashpro by selecting the Flashpro button on the Flashpro window.

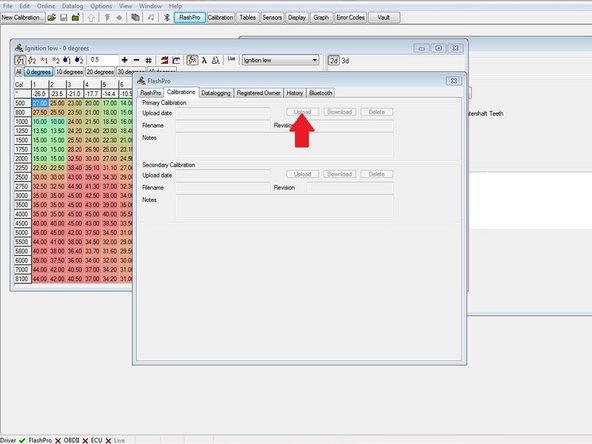

    • Upload your calibration to your Flashpro by selecting the Flashpro button on the Flashpro window.

    • Unplug your Flashpro from your computer.

    • Flash the calibration onto your vehicle.

    • Plug the Flashpro into the OBD2 port with the ignition switched on but the engine is not running. Hold down the program button for 3 seconds and then release. The program light will flash for 1 minute and 30 seconds while the calibration is uploaded. The light will stop flashing once the calibration is completely uploaded.

    • You have successfully installed your Flashpro and uploaded a basemap calibration!
