Garage Unique Rear Carbon Fiber Wing 23+ Civic Type R

Written By: Hybrid Racing
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Remove the factory wing. It's held on by x6 T30 bolts. Three on each side. The bolts are very easy to remove. Be careful not to scratch the factory wing or the paint. The bolts are very easy to remove. Be careful not to scratch the factory wing or the paint.

    • Remove the factory wing. It's held on by x6 T30 bolts. Three on each side.

    • The bolts are very easy to remove. Be careful not to scratch the factory wing or the paint.

    Edit

  2. The GU wing uses the factory stands and hardware. Install the factory T30 bolts. Be sure not to cross-thread or strip these bolts; they are fragile. Install the factory T30 bolts. Be sure not to cross-thread or strip these bolts; they are fragile.

    • The GU wing uses the factory stands and hardware.

    • Install the factory T30 bolts. Be sure not to cross-thread or strip these bolts; they are fragile.

    Edit

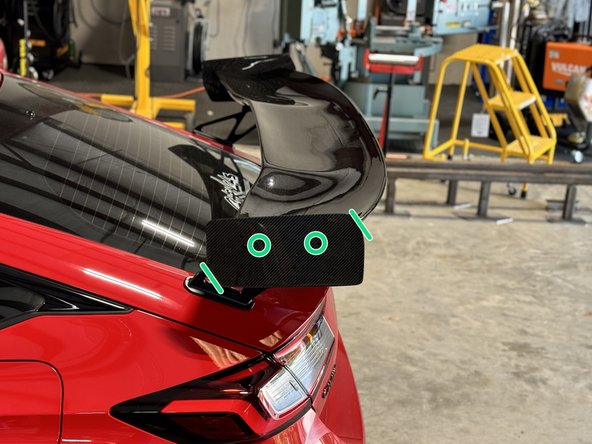

  3. Once the wing is bolted on you can install the end plates. Install them per the diagram.

    • Once the wing is bolted on you can install the end plates.

    • Install them per the diagram.

    Edit
