Hybrid Racing High Flow Fuel Pump (01-05 Civic & 02-06 RSX)

Written By: Hybrid Racing
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

17

Time Required

Suggest a time??

Sections

1

Flags

0

Quiz

0

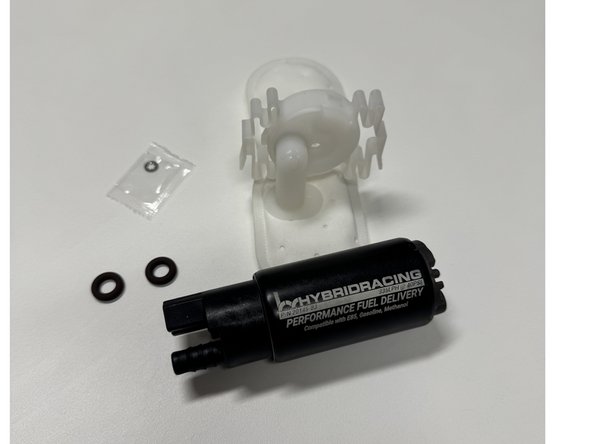

  1. Remove the fuel pump assembly from the vehicle. These instructions show the 02-04 RSX Type S pump assembly. This pump will work in all 01-05 Honda Civic and 02-06 RSX base and Type S models.

    • Remove the fuel pump assembly from the vehicle.

    • These instructions show the 02-04 RSX Type S pump assembly. This pump will work in all 01-05 Honda Civic and 02-06 RSX base and Type S models.

    Edit

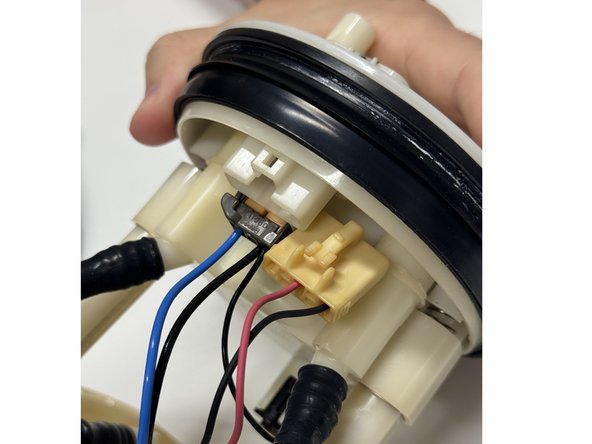

  2. Unplug the fuel pump connectors. A flat-tipped screwdriver can help separate them. Be sure not to crack the plastic. A flat-tipped screwdriver can help separate them. Be sure not to crack the plastic.

    • Unplug the fuel pump connectors.

    • A flat-tipped screwdriver can help separate them. Be sure not to crack the plastic.

    Edit

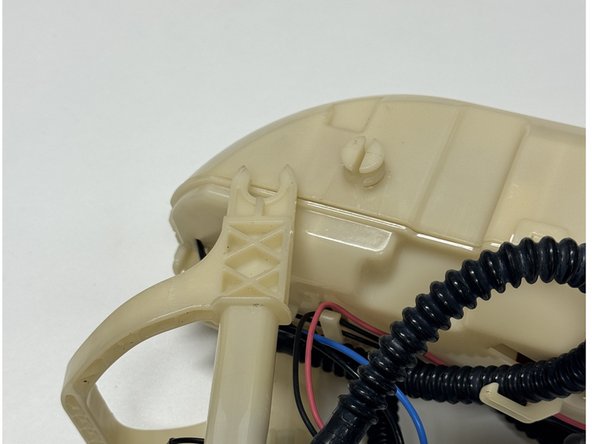

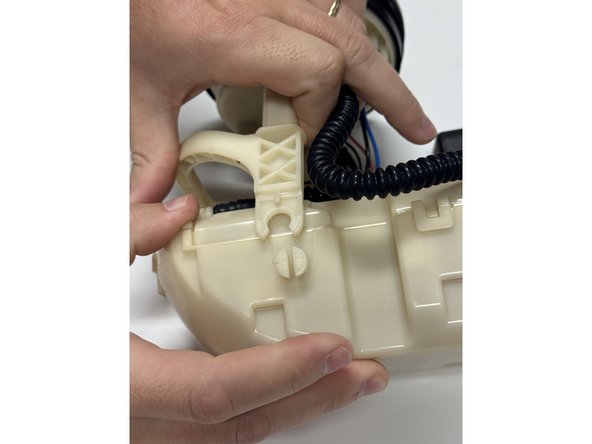

  3. Unclip the lower fuel pump cage from the main housing. Unclip the lower fuel pump cage from the main housing.

    • Unclip the lower fuel pump cage from the main housing.

    Edit

  4. Unclip and remove the fuel pump return line.

    • Unclip and remove the fuel pump return line.

    Edit

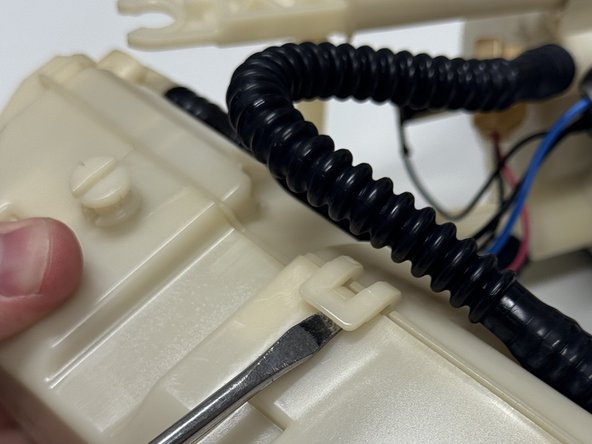

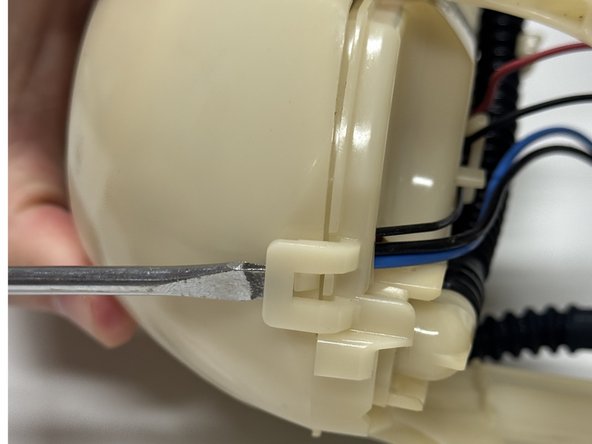

  5. Unclip and open the fuel pump cage. Unclip and open the fuel pump cage. Unclip and open the fuel pump cage.

    • Unclip and open the fuel pump cage.

    Edit

  6. You may need to remove the wires clipped in place. Once done, remove the cage cover completely. You may need to remove the wires clipped in place. Once done, remove the cage cover completely. You may need to remove the wires clipped in place. Once done, remove the cage cover completely.

    • You may need to remove the wires clipped in place. Once done, remove the cage cover completely.

    Edit

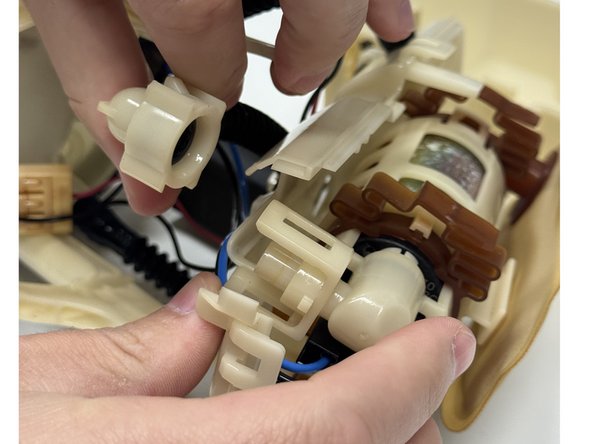

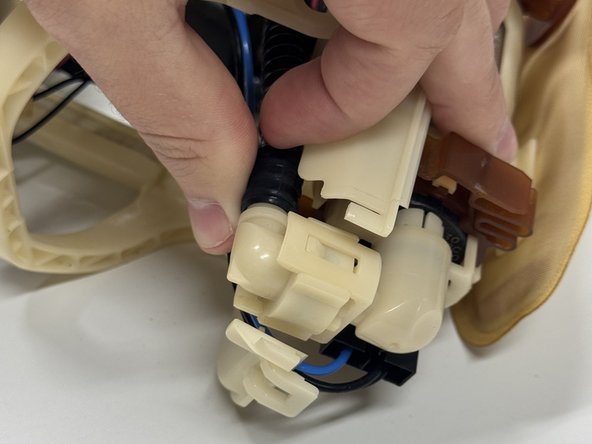

  7. Unclip and remove the fuel pump hose. Unclip and remove the fuel pump hose.

    • Unclip and remove the fuel pump hose.

    Edit

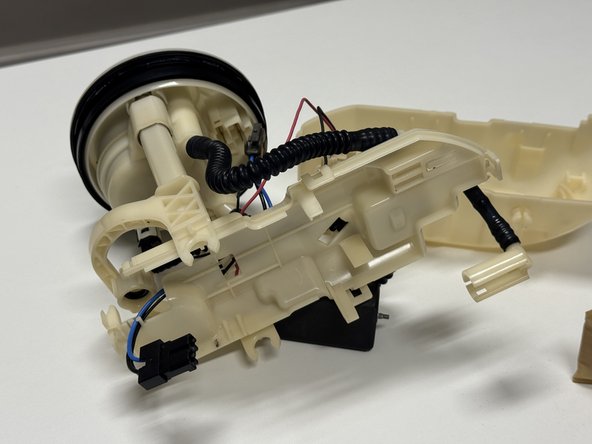

  8. Unplug and remove the fuel pump from the cage. Unplug and remove the fuel pump from the cage. Unplug and remove the fuel pump from the cage.

    • Unplug and remove the fuel pump from the cage.

    Edit

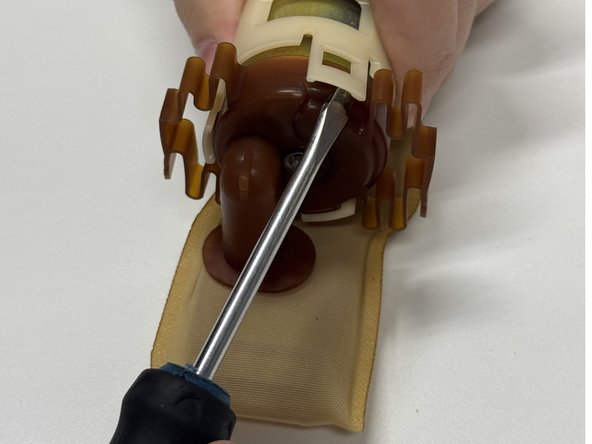

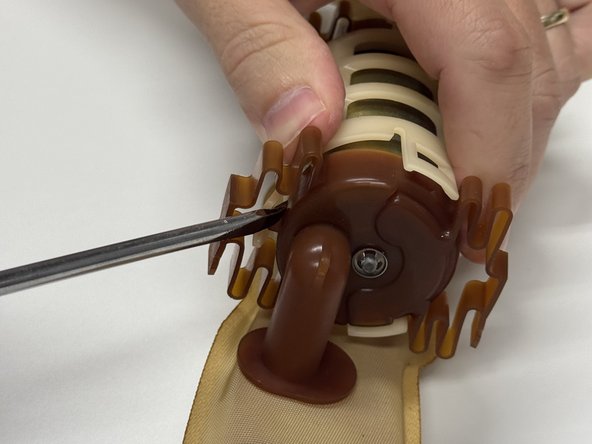

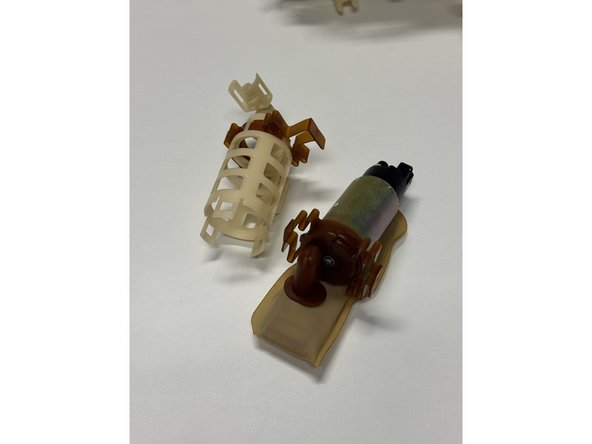

  9. Unclip and remove the pump holder. This will separate the pump and filter from the outer cage. Unclip and remove the pump holder. This will separate the pump and filter from the outer cage. Unclip and remove the pump holder. This will separate the pump and filter from the outer cage.

    • Unclip and remove the pump holder. This will separate the pump and filter from the outer cage.

    Edit

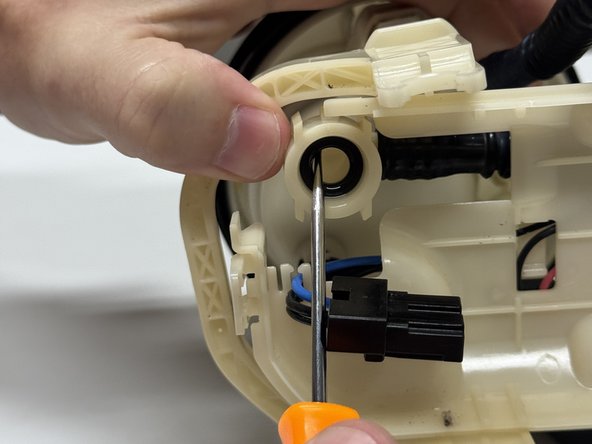

  10. Inside the main housing, locate and remove the old o-ring. Inside the main housing, locate and remove the old o-ring.

    • Inside the main housing, locate and remove the old o-ring.

    Edit

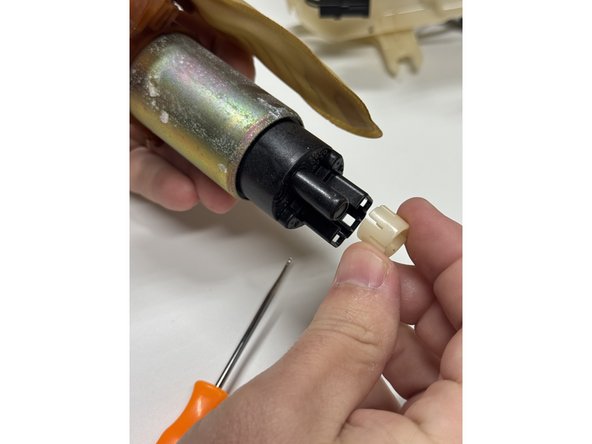

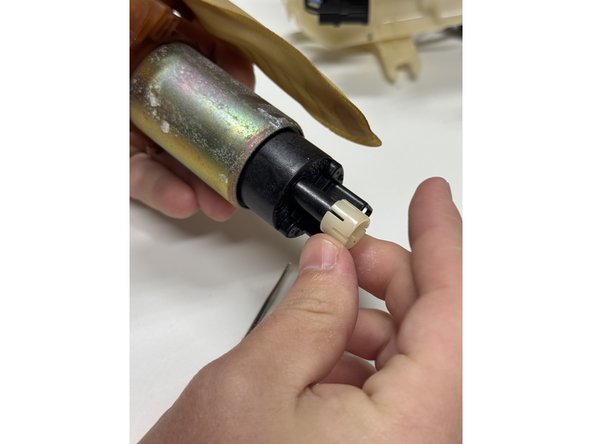

  11. Remove the pump spacer from the factory pump. If you do not do this, it will cause a loss of pressure once the device is reinstalled.

    • Remove the pump spacer from the factory pump.

    • If you do not do this, it will cause a loss of pressure once the device is reinstalled.

    Edit

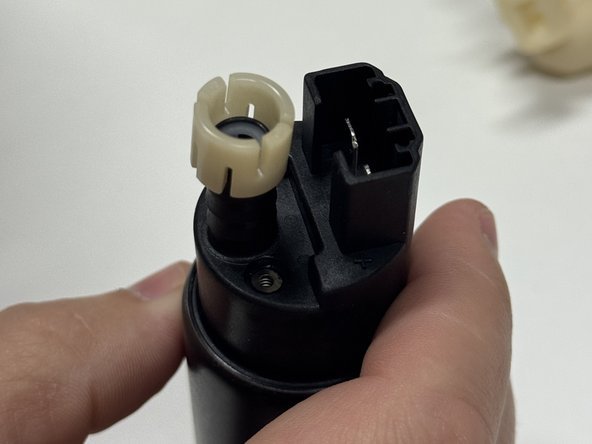

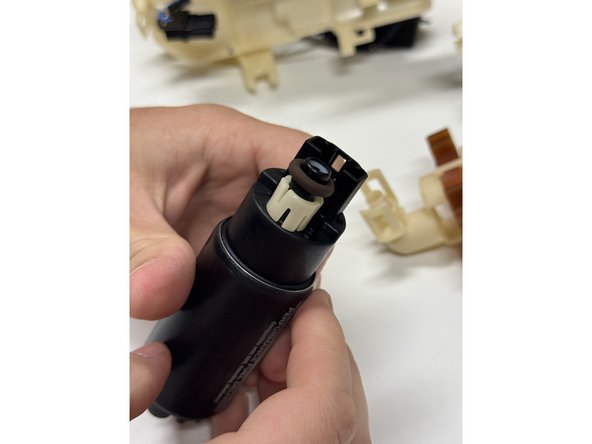

  12. Reinstall the pump spacer on the Hybrid Racing fuel pump. Then install the new, supplied o-ring onto the pump. Then install the new, supplied o-ring onto the pump.

    • Reinstall the pump spacer on the Hybrid Racing fuel pump.

    • Then install the new, supplied o-ring onto the pump.

    Edit

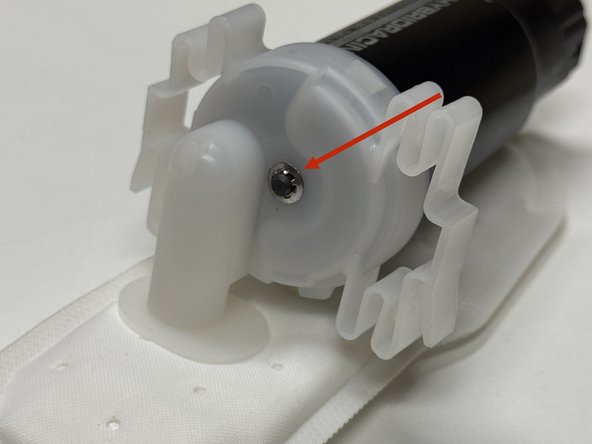

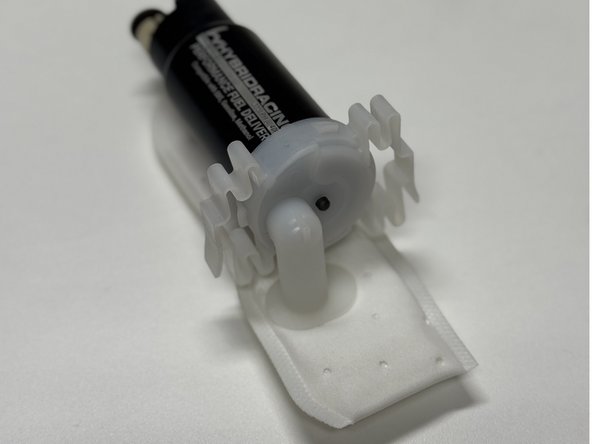

  13. Install the new supplied pump filter and use the provided retaining clip to hold it in place. Install the new supplied pump filter and use the provided retaining clip to hold it in place.

    • Install the new supplied pump filter and use the provided retaining clip to hold it in place.

    Edit

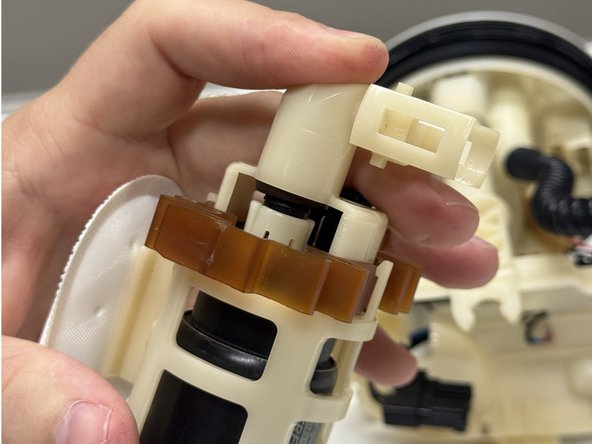

  14. Install the new pump into the factory cage. Ensure that everything clips back together and the O-ring is securely in place. Install the new pump into the factory cage. Ensure that everything clips back together and the O-ring is securely in place.

    • Install the new pump into the factory cage. Ensure that everything clips back together and the O-ring is securely in place.

    Edit

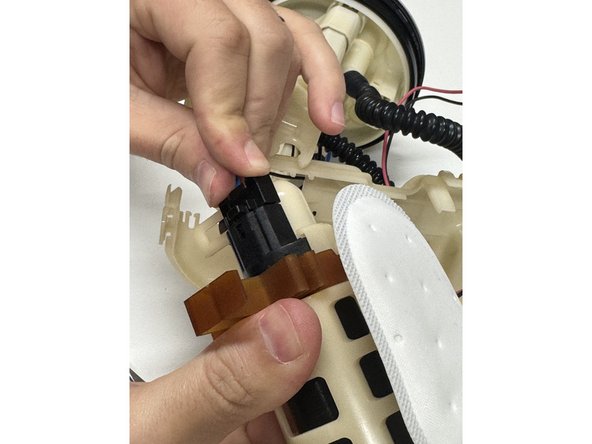

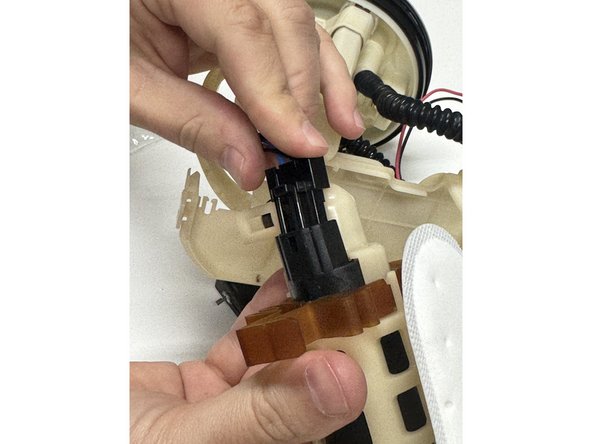

  15. Clip the new pump assembly back into the factory cage. Plug the connector back into the fuel pump. Plug the connector back into the fuel pump.

    • Clip the new pump assembly back into the factory cage.

    • Plug the connector back into the fuel pump.

    Edit

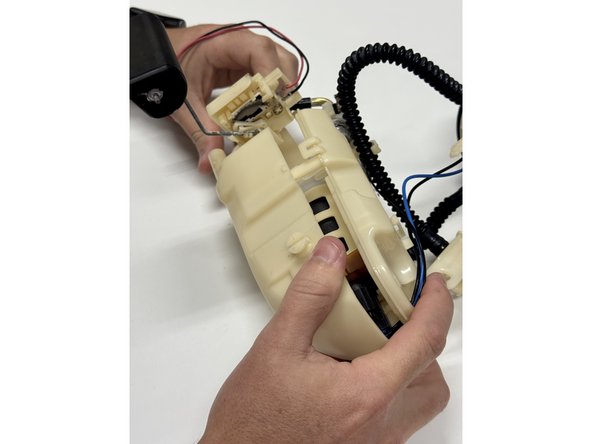

  16. Snap the new pump and lower housing back together. You can then reinstall the wiring loom and plug in the fuel return hose. Please make sure everything is secured together before installing this back into the car. Make sure all connections and wiring parts are plugged back in. Follow the steps in reverse to make sure you've completed everything. Make sure all connections and wiring parts are plugged back in. Follow the steps in reverse to make sure you've completed everything.

    • Snap the new pump and lower housing back together. You can then reinstall the wiring loom and plug in the fuel return hose. Please make sure everything is secured together before installing this back into the car.

    • Make sure all connections and wiring parts are plugged back in. Follow the steps in reverse to make sure you've completed everything.

    Edit

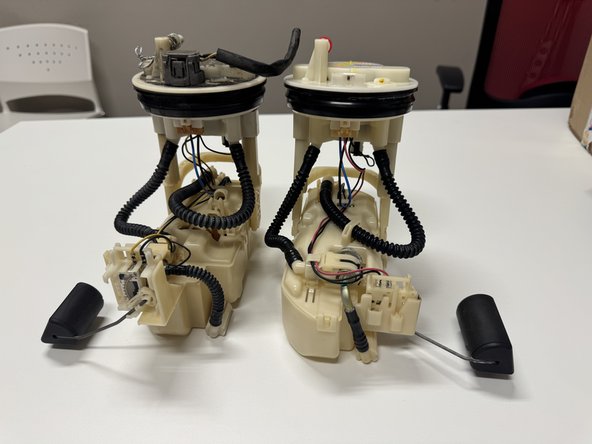

  17. Shown in the images is the difference between the 02-04 RSX Type S pump assembles and the 05-06 RSX Type S. They are the same, but the sending unit and float are shaped slightly different. The pump installation process is the same for both types.

    • Shown in the images is the difference between the 02-04 RSX Type S pump assembles and the 05-06 RSX Type S. They are the same, but the sending unit and float are shaped slightly different.

    • The pump installation process is the same for both types.

    • Reinstall the housing into the car and check for leaks before cranking the engine.

    Edit
